Twin Rod Tir-Rod TN Series Double Shaft Air Cylinder

FOB Reference Price:Get Latest Price
$20.00 - $50.00 / Pieces | 1 Piece/Pieces twin rod cylinder (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Piston Cylinder
Power:
Pneumatic
Body Material:
Aluminum
Maximum Stroke:
1000mm
Shaft Diameter:
20mm
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
TN20x130
Brand Name:
KLQD
Size:
32mm-----320mm
Motion:
Double Action
Working Medium:
Air
Operating Voltage Range:
1.0~9.0 Kgf.cm2
Ensured Pressure Resistance:
13.5kgf/cm2
Operating Speed Range:
100~500 mm/s
Port Size:
M5x0.8 1/8"
Supply Ability
Supply Ability:
10000 Piece/Pieces per Quarter twin rod cylinder
Packaging & Delivery
Packaging Details
Twin rod cylinder for A:Standard packing
B: Case
Port
Shanghai or Ningbo
Lead Time :
Shipped in 7 days after payment

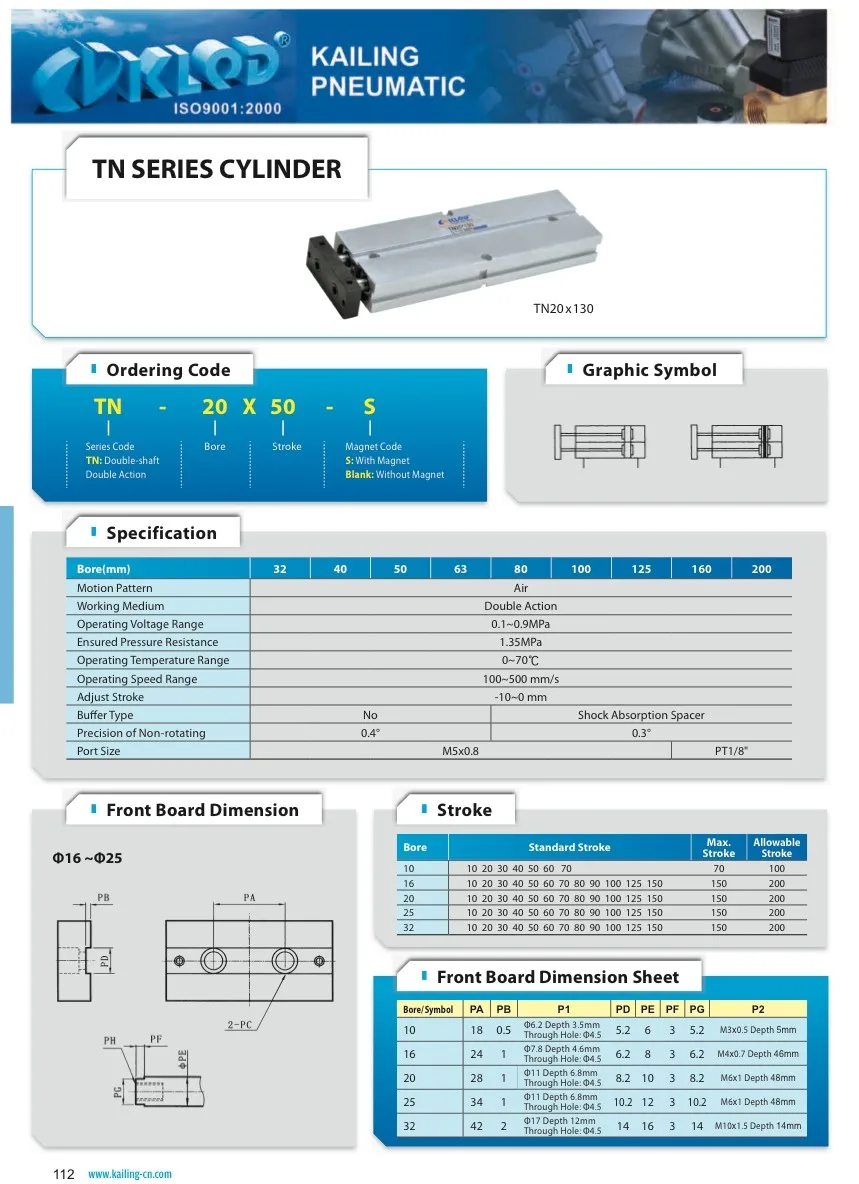

Product Description
Bore(mm)
32
40
50
63
80
100
125
160

200
Motion Pattern
Double Action
Working Medium
Air
Operating Voltage Range
0.1~0.9 Mpa
Ensured Pressure Resistance
1.35 Mpa
Operating Temperature Range
0~70 °C
Operating Speed Range
100~500 mm/s
Adjustable Stroke
-10~0 mm
Buffer Type
NO
Shock Absorption Spacer
Port Size
M5x0.8
1/8"
Production Processes

Warehouse


Wide range of product.


Standard Product in stock.

About KLQD

1.Since 2002.About 20 years of manufacturing and export.8 years Gold Supplier of Alibaba.


2.Main products:Solenoid Valve,Actuator,Air cylinder,Air source treatment


3. Main markets: America, Europe, Brazil and so on.


4.we accept Paypal, Western Union, bank T.T,LC payment.

5. Expert packing to protect products in shipment

6. OEM is accepable.

7. Sample order is accepable

8. Fast responsilbe to all your questions.

9. 100% quality test before packing.Short delivery time for standard products.

10. The size of the company is expanding,product types will be more and more.

Laboratory


The introduction of the latest test machine.


More accurate testing of the flow       rate,pressure,leaking,temperature.


Certificate
Packing & Delivery

Carton Packing.

Use the strong Nylon bags to protect products.

Carton Packing.

Expert and careful packing to make sure all products are in good condition.

Pallet packing & delivery.

1. Use the pallet to protect products.

2. Sea shipment.

3. Air shipment.

4. Also has the cooperation with DHL/Fedex/UPS/EMS.

Payment
Related products

Pneumatic Actuator/Ball Valve/Butterfly Valve

Electric Actuator/Ball Valve/Butterfly Valve

Angle Seat Valve

Solenoid Valve

Pneumatic Cylinder

Tube

Pneumatic Fittings

Air Source Treatment

Mechanical Valve

FAQ

Q1. Is sample order acceptable?

A: Yes.It's ok.

Q2. How to place the order?

A: You can send us email or inquiry at alibaba directly.

Q3. How many days for delivery?

A: We have stock for standard products.

Q4. How to make the payment?

A: We accept BankT/T,Western Union,Paypal,or L/C,

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery
