low price AT-50D double action rotary ball valve actuator

FOB Reference Price:Get Latest Price
$19.50 - $21.00 / Pieces | 1 Piece/Pieces ball valve actuator (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Actuator, single or double acting
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
AT-50D ball valve actuator
Brand Name:
KLQD
Bore size:
50mm
Max pressure:
10Bar
ball valve actuator rotate angle:
90
Controlled by:
Pneumatic
Certificates:
CE, ISO, RoHS
Stock:
more than 100 pieces
Quality test:
100% before packing
Brand:
KLQD
Delivery:
air, sea, express
Supply Ability
Supply Ability:
100 Set/Sets per Week ball valve actuator
Packaging & Delivery
Packaging Details
ball valve actuator Packing details:
Cartons, boxes, pallets
Port
Ningbo or ShangHai
Lead Time :
3 days after ball valve actuatororder confirmed
Product Description

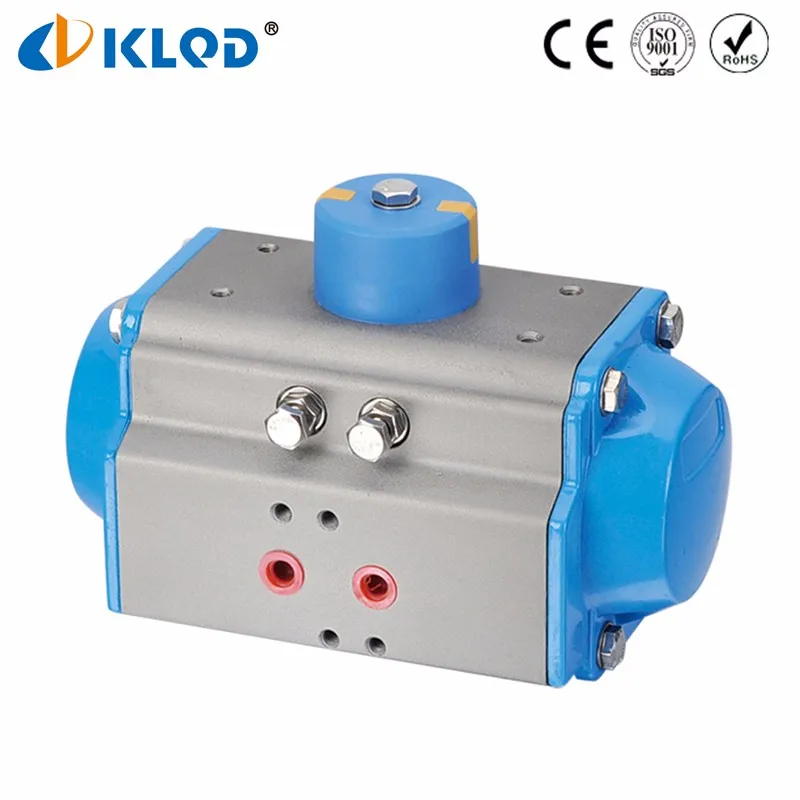

AT-50D double action rotary ball valve actuator

1. Indicator
Indicator according to VID/VIE3845 is convenient for mounting accessories such as limit switch box, Positioner and etc.

2. Pinion
The design of the nickel-plated alloy steel integrated forging pinion drive is according the NAMUR,ISO5211 and DIN3337 standards. Special standard are available upon request.

3. Actuator Body
High quality aluminum alloy extrusion formed. The surface has been treated by anodized hardening followed by epoxy polyester coating. Other surface treatments are available e.g. PTFE and Nickel plating as well as other color coatings on request.

4. End Cap
The surface has been treated by anodized hardening followed by epoxy polyester coating. Other surface treatments are available on request e.g. PTFE and Nickel plating as well as other colors on request.

5. Piston
Manufactured from Die-cast aluminum and treated by anodized hardening process. Symmetric mounting of the piston helps to ensure easy maintenance. Reverse action requirements can be achieved by inverting the pistons.

6. Adjusting Bolt
The two independent adjustment bolts can adjust opening and closing of the mounted valve within±5° .

7. O-rings
Standard NBR rubber O-rings provide trouble-free operation at standard temperature ranges. For other temperature requirements relevant materials can be offered on request.

8. Air Connection

Conforms to NAMUR standards

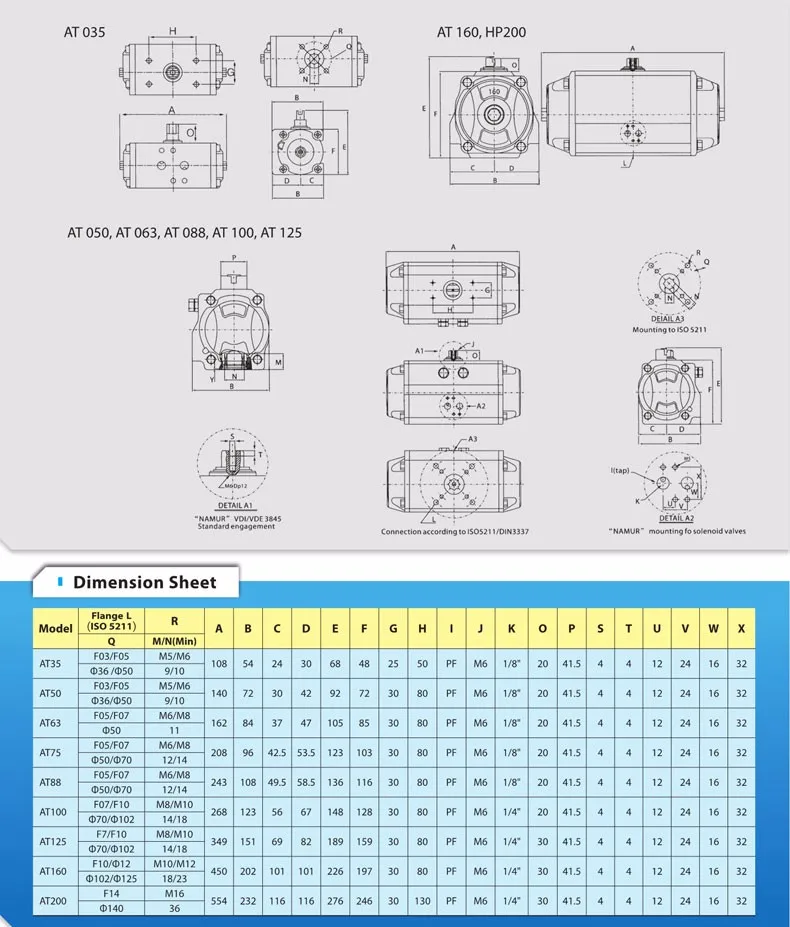

Ball valve actuator bore size
32, 50,63,75,88,100,125,145,160,190,240,270
Pressure range
2.5~8bar
Temperature range
-20~80C
Rotate ange
90
Life time
one million time
Mini order quantity
1 piece
OEM
Acceptable
Detailed Images
Why Choose Us

1. We are the factory

2. More than 10 Years in pneumatic lines,Rich production experience

3. 8 years of Alibaba golden supplier.

4. Strict Quality Control System

5. Fast delivery

6. Excellent and Experienced Team

7. Low Mini order quantity required : 1 piece, and OEM service avaiable.

8. Trade assurance limited:$400000,100% full protection for your order.

9. Looking Forward To Working With You,Contact Us Now!

Related products

                                  Angle Seat Valves


                                Solenoid Valves


Pneumatic Actuator/ pneumatic ball valve/ pneumatic butterfly valve/ electrical actuator

Directional Solenoid valves/ 5/2 way, 3/2 way, 5/3                                         way

                          Air source treatments


                                    Air Cylinders


Air tubes

Air Fittings


Payment & RFQ

RFQ

1. What is the MOQ for your products?

There is no special requirement for standard products?


2. How to place the order?

We accept Alibaba trade online and orders sent by air, sea, express.


3. Why your quotation is different with the price listed in web?

We have different price policy to the buyer with different quantity and demand. you can contact with me directly to get a cheaper price.


4. How many days you can send order after payment?

For standard products, we can send around 2~3 days after payment.


5. Do you accept OEM?

Yes, and we have 12 year of OEM service.


6. What certificates can you offer?

CE, ISO


7. What products do you make and sell?

Angle seat valves
Solenoid valves
Pneumatic actuators
pneumatic ball valves
Pneumatic butterfly valves
Electrical actuator
Electrical ball valve / butterfly valve

Air source treatments: air regulator, air filter, air combination, air lubricator
Air cylinders
Air tubes and fittings
Other pneumatic components


Certificates
Packing & Delivery

Carton Packing.

Use the strong Nylon bags to protect products.

Carton Packing.

Expert and careful packing to make sure all products are in good condition.

Pallet packing & delivery.

1. Use the pallet to protect products.

2. Sea shipment.

3. Air shipment.

4. Also has the cooperation with DHL/Fedex/UPS/EMS.

Factory Show

Ningbo Kailing Pneumatic Co., Ltd. is a leading Chinese company specializing in the manufacture of solenoid valves and pneumatic components.
High quality of the raw materials, the precision of the parts, the hard tests during and at the end of production are a warranty of reliability and features. Our real strength is to develop customized products to solve any requirement of utilization. The production runs conforming to the rigorous ISO 9001/2000 requirements .The product range consists of solenoid valves, process valves,Air source treatment units etc ,which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and waste treatment.
